ANSI 16.5 B API 600 Cast Steel Flanged Gate Valve WCB Gate Valve
Product Description:
ANSI Gate Valve (cast steel)
Brief introduction:
The series of gate valves include cast steel gate valve and forged steel gate valve. They are designed and manufactured according to ANSI B16.34. With solid wedge and flexible wedge, so it can be used for different pressures. Gate valves have back seal. Back seal of forged-steel gate valve is weld with stainless steel. So it has perfect sealing. Its maintenance is convenient. Widely used in petroleum,chemistry,water treatment industries.
Features:
- "H" type wedge:
Gate valve has "H" type , flexible single wedge. It can compensate the distortion of body. So it has reliable sealing and prevent wedge against difficult operation because of overload. It is suitable to steam and other high temperature medium.
- Full port design:
Gate valve has full port. So it is convenient to clear pipeline. - Changeable seat:
Seat and body is connected with thread. So seat can be dismantled and changed, It is convenient to maintenance.
- Precise design:
Design the body and bonnet according to precise calculation. body and bonnet have high strength , rigid and flow ability
Technical Specification
-Nominal diameter: 2"-24"
-Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb
-Applicable Medium: water ,gas,oil,and other causticity medium.
Applications Standard
-Manufacture standard : ANSI B16.34
-Face to face dimension: ANSI B 16.10
-Flange dimension: ANSI B 16.5.MSS-SP-44
-Test: API 598. API 6D

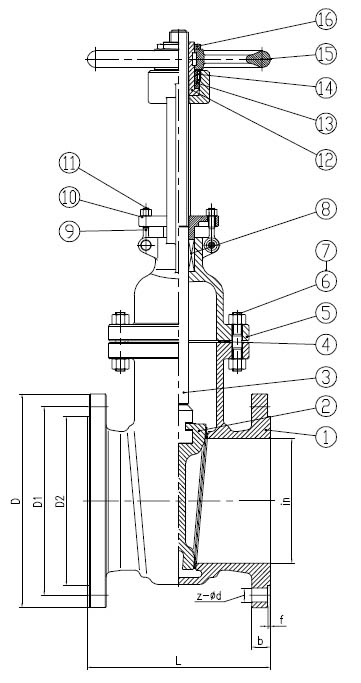

| Gate Valve Z41W RF |
| NO | Name | Material | NO | Name | Material |
| 1 | Body | A351-CF8 | 9 | Bolt | A320-B8 |
| 2 | Disc | A351-CF8 | 10 | Gland | A351-CF8 |
| 3 | Stem | A182-F304 | 11 | Nut | A194-8.8a |
| 4 | Gasket | PTFE | 12 | Stem Nut | ZCual10Fe3 |
| 5 | Bonnet | A351-CF8 | 13 | Bolt | A320-B8 |
| 6 | Bolt | A320-B8 | 14 | Bolt | A320-B8 |
| 7 | Nut | A194-8.8a | 15 | Handwheel | KTH350 |
| 8 | Filler | PTFE | 16 | Nut | A194-8.8a |
Our Advantage:
1. We have more than 30years experiences to explore market.
2. We have more than 120 types body moulds, which include ISO,DIN,ANSI,BS standard.
3. We own full-automatic machine paint line, match high-temperature
baking house,which makes smooth paint and good appearance of valve.
4. Design-cast-machining-assemble-sale-after sale service.Perfect production and service,efficient and professional sales team,what we sale is not products, but solution for you!
We regards"high quality products and customer satisfaction"as
belief,regards "reasonable price, attentive service and most reliable
quality" as basic of company. We make the following commitments to
you.
|
|

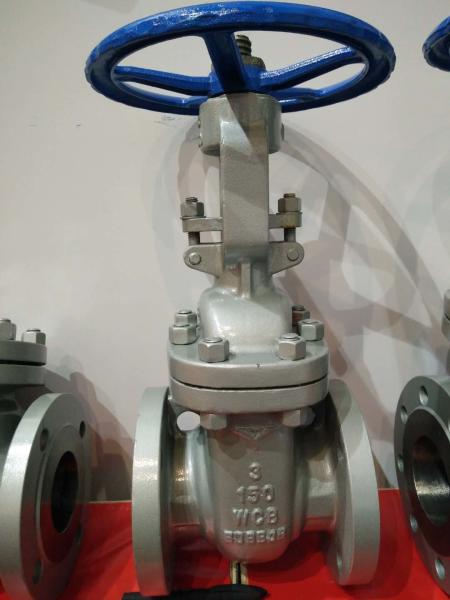

ANSI 16.5 B API 600 Cast Steel Flanged Gate Valve WCB Gate Valve Images
|
