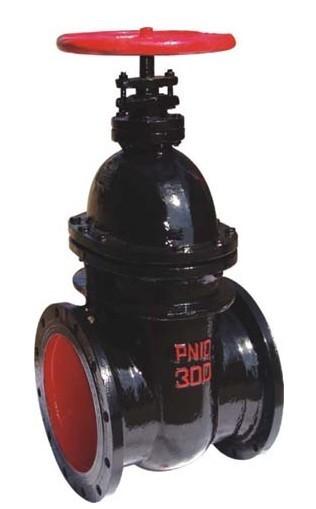

Non Rising Stem 36 Inch Ductile Iron Gate Valve PN16 DIN 3352 Standard
Product Description:
The Resilient Seated Gate Valves are usded in irrigation and water shutoff distribution service.They feature an epoxy-coated, cast iron body with ring-tite connections, resilient wedge coated NBR or EPDM, stainless steel stem and cast iron handwheel. It is ideal for use in irrigation, potable water, water distribution service and feed lines, and sewage disposable facilities.
Technical Specifications:
1) Design and manufacture: BS5163, DIN 3352, JIS B2043, AWWA C509
2) Test and inspection: BS6755, DIN 3230, JIS B2003, API598
3) Face to face dimensions: BS5163: 1986, DIN 3202 F4-F5, JIS B2002, ANSI B16.10
4) Flanged end: BS4504, DIN 2532, JIS B2212, ANSI B16.10/ANSI B16.50
Specifications:
- Size: Soft seat: 1-1/2" to 24"; Metal seat: 1-1/2"to 64"
- Class: PN10, PN16.125LB, 150LB
- Type: Bolted Bonnet, non rising stem/rising stem, NBR/EPDM/brass/bronze/stainless steel seat ring.
- Material: CAST IRON, DUCTILE IRON
- Operation: Hand wheel, gear, square head.
Our Advantage:
1. We have more than 30years experiences to explore market.
2. We have more than 120 types body moulds, which include ISO,DIN,ANSI,BS standard.
3. We own full-automatic machine paint line, match high-temperature
baking house,which makes smooth paint and good appearance of valve.
4. Design-cast-machining-assemble-sale-after sale service.Perfect production and service,efficient and professional sales team,what we sale is not products, but solution for you!
We regards"high quality products and customer satisfaction"as
belief,regards "reasonable price, attentive service and most reliable
quality" as basic of company. We make the following commitments to
you.
