Product Description:
1.1 Defination: A Globe valves is a linear motion valve and are primarily designed to stop, start and regulate flow.
1.2 Body Design: There are three primary body designs for Globe valves,namely:Tee Pattern or Z-body,
Angle Pattern and Wye Pattern or Y-body body.
- Tee Pattern Globe: is the most common body type,with a Z-shaped diaphragm.
The horizontal setting of the seat allows the stem and disk to travel perpendicular to the horizontal line.
- Angle Pattern Globe:is a modification of the basic Tee Pattern Globe valve.
The ends of this Globe valve are at an angle of 90 degrees,and fluid flow occurs with a single 90 degrees turn.
- Y Pattern Globe: is an alternative for the high pressure drop,inherent in Globe valves.
Seat and stem are angled at approximately 45 degrees,what gives a straighter flowpath at full
opening and offer the least resistance to flow.They can be cracked open for long periods without severe erosion.
Main Available List for Typical Angle Globe Valve
| Product Name | Angle Globe Valve |
| Material | Cast Iron/Ductile Iron
Casting: A216WCB/WCC, A352LCB/LCC, A351 CF8/CF8M/CF3/CF3M,Other
Forging: A105, A694F52, A182 LF2, A182 F304/F304L/F316/F316L, F321,Other |
| Size | 2"-24"(DN50-DN600) |
| Working Pressure | Class 150LB-900LB(PN16-PN150) |
| Connection Ends | Flange per ASME B16.5, BW per ASME B16.25, SW per ASME B16.11, Other |
| Valve Operation | Handwheel, Gear Worm, Electric, Pneumatic, Other |
| Disc | Iron, A105+ENP, F52+ENP, F6a,LF2+ENP, SS304,SS316,SS321,Other |
| Seal | Iron,13CR/13CR,13CR/STL,STL/STL,SS304/SS304,SS316/SS316,Other |
| Stem | 1045+ENP,F6a,SS4140+ENP,SS304,SS304L,SS316,SS316L,Other |
| Gasket | SS304+Graphite,SS316+Graphite,SS316L+Graphite,PTFE,Other |
| Packing | Flexible Graphite,PTFE,Other |
Technical Specifications:
- Design & Manufacture standard: BS1873, API602, BS5352,ASME B16.34,
- Pressure & Temperature standard: ASME B16.34
- Face to face dimension standard: ASME B16.10
- Flange standard: ASME B16.5, ASME B16.25
- Test & Inspect: API 598

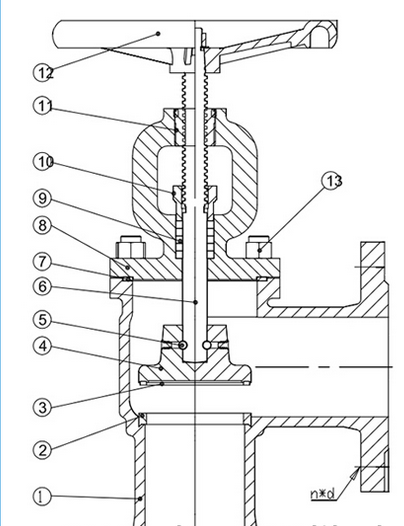

| NO | Part Name |
| 1 | BODY |
| 2 | SEAT RING |
| 3 | DISC RING |
| 4 | DISC |
| 5 | BALL |
| 6 | STEM |
| 7 | GASKET |
| 8 | BONNET |
| 9 | PACKING |
| 10 | GLAND FOLLOWER |
| 11 | STEM NUT |
| 12 | HANDWHELL |
| 13 | BOLT AND NUT |
Our Advantage:
1. We have more than 30years experiences to explore market.
2. We have more than 120 types body moulds, which include ISO,DIN,ANSI,BS standard.
3. We own full-automatic machine paint line, match high-temperature
baking house,which makes smooth paint and good appearance of valve.
4. Design-cast-machining-assemble-sale-after sale service.Perfect production and service,efficient and professional sales team,what we sale is not products, but solution for you!
We regards"high quality products and customer satisfaction"as
belief,regards "reasonable price, attentive service and most reliable
quality" as basic of company. We make the following commitments to
you.
