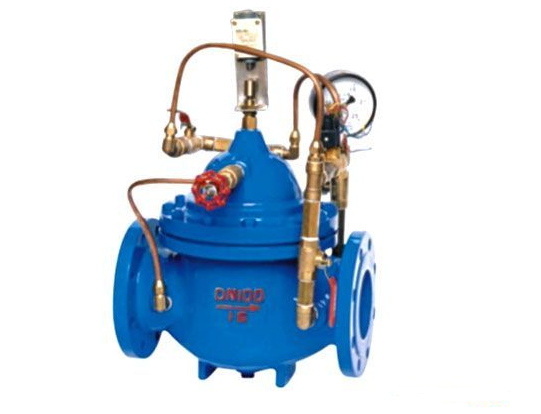

Hydraulic Pump Pressure Relief Valve 2 Inch Carbon Steel PN20 Pressure

Name: Hydraulic Pump Pressure Relief Valve 2 Inch Carbon Steel PN20 Pressure
Brand: TEYI/OEM
Price: 1 USD

Brand Name : TEYI/OEM

Model Number : 700X

Certification : API/CE/ISO/TS

Place of Origin : China

MOQ : 1-10PCS

Price : negotiation

Payment Terms : L/C, T/T.Western Union

Packaging Details : 500pcs per month

Name : Pump Control Valve

Size : DN50 to DN600

Pressure : PN6 to PN25

Working Temp. : 0 to 120 ℃

Medium : water or Oil

inspection Standard : GB/T13927 or API 598

Contact Now

Hydraulic Pump Pressure Relief Valve 2 Inch Carbon Steel PN20 Pressure

Description:

700X Pump Control valve can install at the pump's outlet in high building and other feeding system to prevent fluid flow backwards. Before the pump stops, the valve closes 90% or so ahead to prevent the water hammering and water hitting at pumps' instant stop, after the pump stoped completely, the valve aslo closed completely to prevent the fluid flow backwards at the outlet of the pump to protect the pump and prevent the pump turn backwards due to backward fluid.

Material:

Material for main Parts	Body/Cover	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
	Diaphragm	EPDM or NBR
	Disc	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
	Pilot valve	SS or Brass
	Spring	SS304
	Shaft	A276 410
Operation	Automatic control by pressure differential
Working Temperature	0 to 80 Celsius degree
Working Medium	Water

Dimesion:

size(mm)	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L(mm)	205	229	250	292	330	356	495	622	698	787	900	978	1075	1230
H(mm)	270	305	320	400	455	502	636	750	913	913	1035	1035	1300	1370
H1(mm)	200	210	220	260	310	342	413	510	600	600	685	685	880	950

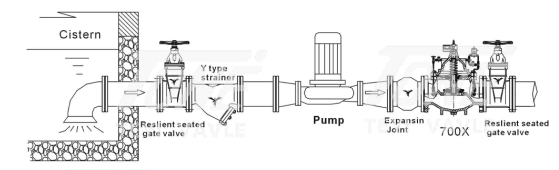

Installation drawing:

Hydraulic Pump Pressure Relief Valve 2 Inch Carbon Steel PN20 Pressure

Competitive Advantage:

1 . 30 years of industrial valves experience to guarantee quality.

2 . Always stand on the side of of the customer, and support customer to win the market and find new way.

3 . 12 months warranty

4 . Short Delivery time
