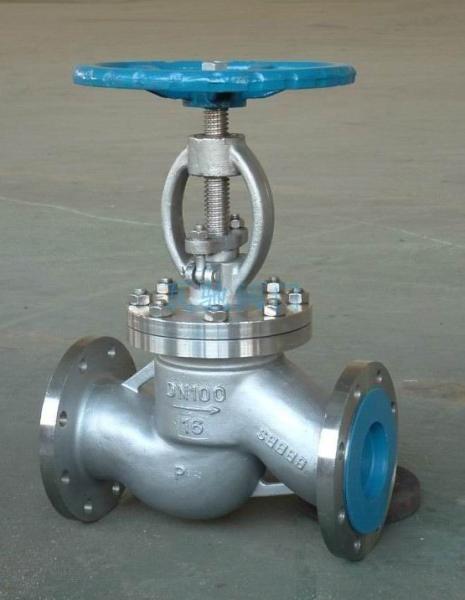

GB Standard DN100 Cast Steel Flanged Globe Valve PN16
Description:
Flanged connection globe valves are used to cut or connect the pipe media under pressures between PN1.6-16MPa, working temperatures between -29～550°C, in oil industry, chemical industry, pharmaceutical, fertilizer, and power industry.
Main structral features:
- Rational structure, reliable sealing, excellent performance, pretty appearance.
- Cobult base alloy welded sealing surface, anti-wearing,erosion-proof abrasion-proof abrasion-proof and longer sue life.
- The surface and the adjusting media of the valve shaft are nitrogenized so that it is erosion and abrasion resistant.
- There is back seat structure in the valve, so the sealing reliable.
- The material of the fillings and the flanges sizes can be chose and matched according to the applications and the requirements of the users. That can satisfies all kinds of working requirements.
Technical Specifications:
- Design & Manufacture standard: DIN3352
- Pressure & Temperature standard: ASME B16.34
- Face to face dimension standard: DIN 3352-F4,F5,F7
- Flange standard: DIN2543, DIN2544, DIN2545,DIN2546
- Test & Inspect: DIN3230
Material
| Material of main Parts |
Body |
Carbon Steel WCB,WCC,LCB.WC5 |
| Disc |
CS or SS |
| Stem |
Stainless Steel |
| Seat |
HF or STL |
| Backseat Bushing |
Stainless Steel |
| Packing |
Graphite+SS304/SS316 |
| Bolt /Nut |
Carbon steel |
| Operation |
Handwheel, Chain wheel, Gear Box, Pneumatic, Motor,Hydraulic |
| Working Temperature |
-29 to 425 Celsius degree |
| Working Medium |
Water, Oil, Gas, H2SO, Steam |
Our Advantage:
1. We have more than 30years experiences to explore market.
2. We have more than 120 types body moulds, which include ISO,DIN,ANSI,BS standard.
3. We own full-automatic machine paint line, match high-temperature
baking house,which makes smooth paint and good appearance of valve.
4. Design-cast-machining-assemble-sale-after sale service.Perfect production and service,efficient and professional sales team,what we sale is not products, but solution for you!
We regards"high quality products and customer satisfaction"as
belief,regards "reasonable price, attentive service and most reliable
quality" as basic of company. We make the following commitments to
you.
