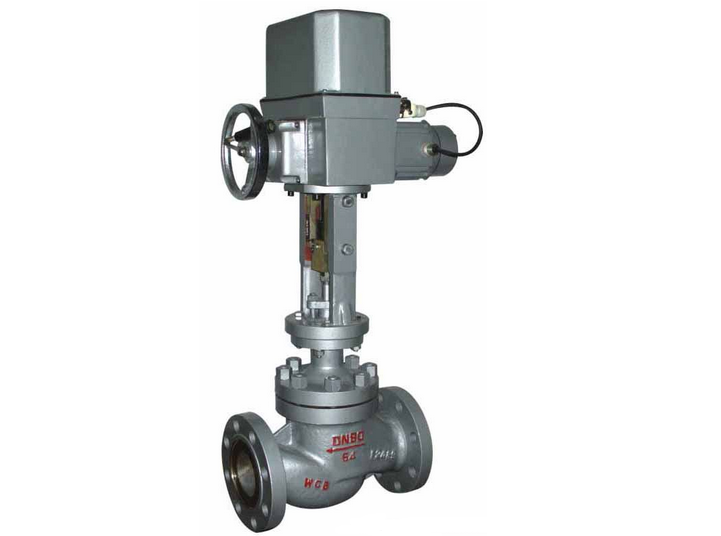

Cast Steel Flanged Globe Valve With Electric Actuator DIN Standard PN16

zhejiang teyi valve co.,ltd.
Contact Now

Cast Steel Flanged Globe Valve With Electric Actuator DIN Standard PN16

Brand Name : TEYI/OEM

Model Number : J941H

Certification : CE/API/ISO/TS

Place of Origin : China

MOQ : 1-10PCS

Price : negotiation

Payment Terms : T/T or L/C at sight, Westm Union

Supply Ability : 500pcs per month

Delivery Time : 7-15 working days after received payment

Packaging Details : Packed in woven bag firstly, and then reinforced with wooden case for outer packing

Product Name : Electric Actuator globe valve

Size : DN50 to DN500

Pressure : PN16 to PN40

Face to Face : DIN3352-F4,F5,F7

Flange End : DIN2543-2546

Inspection standard : DIN3230

Contact Now

Cast Steel Flanged Globe Valve With Electric Actuator DIN Standard PN16

Description:

Cast Steel flange globe valve are highly efficient for services requiring frequent operation and throttling when pressure drop across the valve is about 20% of inlet pressure. Closer throttling, creating higher pressure drops may cavitation or excessive velocities which could cause high noise levels, vibration and possible damage to the valve or adjacent piping. Globe valve can be equipped with optional operators and are avaliable with a variety of trims to match service requirements.

1 . Body: Body is cast with heavy section reinforced at points subjected to the greatest stress. Valves are available in both flanged and butt welding ends. All conform to ANSI specifications.

2 . Stem: Stem has long engagement with yoke bushing for accurate seating.

3 . Dsic stem Nut: Disc stem ring connects the disc to the stem, permitting the disc to swivel and aid in securing tight seating for trouble-free service.

4 . Gland: Gland is Two piece, ball type which exerts even pressure on the packing without binding the stem.

5 . Bonnet Gasket: Bonnet gasket provides a positive seal against leakage. Class150 and 300 valves have a male/female bonnet joint. A ring-type gasket is employed in class600.

Technical Specifications:

  • Design & Manufacture standard: DIN3352
  • Pressure & Temperature standard: ASME B16.34
  • Face to face dimension standard: DIN 3352-F4,F5,F7
  • Flange standard: DIN2543, DIN2544, DIN2545,DIN2546
  • Test & Inspect: DIN3230

Material

Material of main Parts Body Carbon Steel WCB,WCC,LCB.WC5
Disc CS or SS
Stem Stainless Steel
Seat HF or STL
Backseat Bushing Stainless Steel
Packing Graphite+SS304/SS316
Bolt /Nut Carbon steel
Operation Handwheel, Chain wheel, Gear Box, Pneumatic, Motor,Hydraulic
Working Temperature -29 to 425 Celsius degree
Working Medium Water, Oil, Gas, H2SO, Steam

Dimmension:

Cast Steel Flanged Globe Valve With Electric Actuator DIN Standard PN16Cast Steel Flanged Globe Valve With Electric Actuator DIN Standard PN16

Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100
H 218 258 275 280 330 350 355 400 415 460 510 710 786 925 1120
