DIN PN40 OS & Y Flanged Globe Valve , Steam Cast Steel Globe Valve

Product Categories
zhejiang teyi valve co.,ltd.
Contact Now

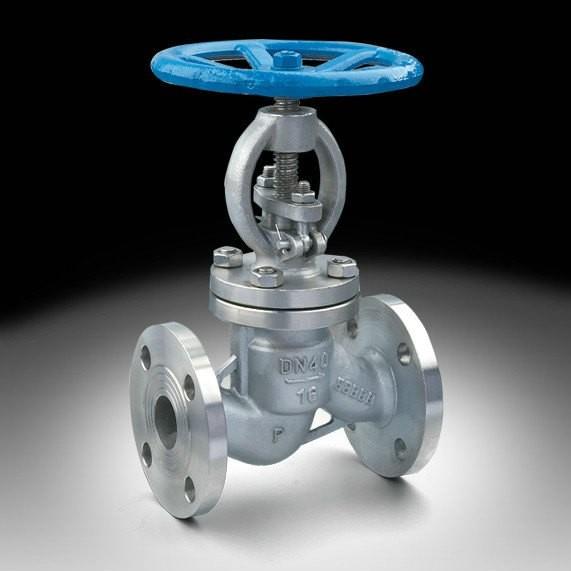

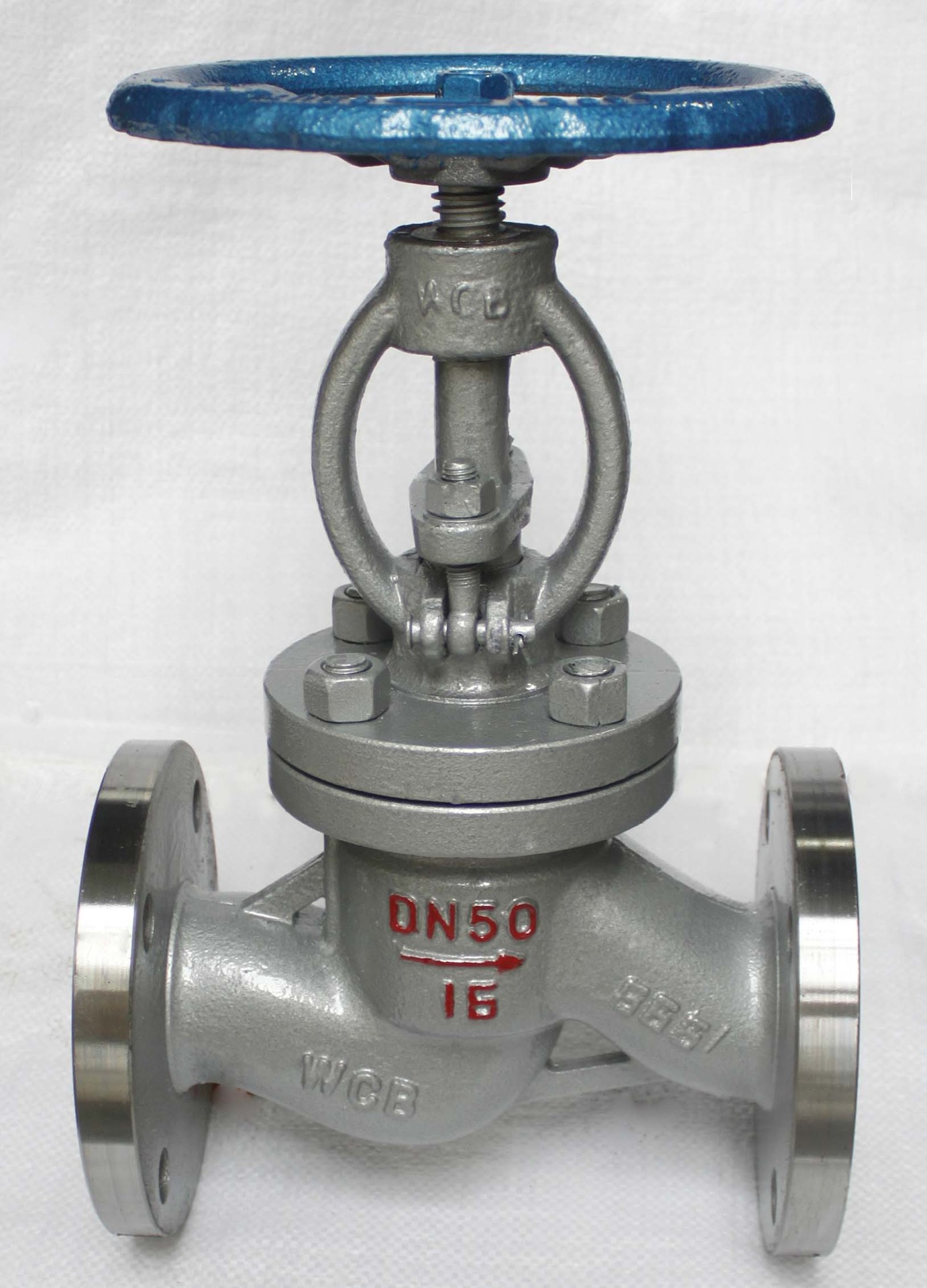

DIN PN40 OS & Y Flanged Globe Valve , Steam Cast Steel Globe Valve

  • 1
  • 2
  • 3

Brand Name : TEYI/OEM

Model Number : J41H

Certification : CE/API/ISO/TS

Place of Origin : China

MOQ : 1-10PCS

Price : negotiation

Payment Terms : T/T or L/C at sight, Westm Union

Supply Ability : 500pcs per month

Delivery Time : 7-15 working days after received payment

Packaging Details : Packed in woven bag firstly, and then reinforced with wooden case for outer packing

Product Name : Flanged Globe Valve

Size : DN50 to DN400

Pressure : PN16 to PN40

Face to Face : DIN3202

Flange End : DIN2543-DIN2546

Design Standard : DIN3356

Working Temp. : -29 to 425 ℃

Inspection Standard : DIN3230

Contact Now

DIN PN40 OS & Y Flanged Globe Valve , Steam Cast Steel Globe Valve

Description:

DIN Flange Globe valves offer the ultimate in dependavle service for steam, air, gas, oil , oil vapor and high pressure in stallations. All have streight-though ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.

1 . Body: Body is cast with heavy sections reinforced at points subjected to the greates stress.

2 . Disc: Disc is plug type.

3 . Stem: The Tee-head disc-stem connection prevents lateral strain on the stem for smooth, easy operation.

4 . Bonnet Gasket: Bonnet gasket provides a positive seal against leakage. PN16 to PN40 valves have a male/Female bonnet joint. A ring type gasket is employed in PN63 to PN100

5 . Operator: Handwheel, Gear Box, Pneumatic, Electric Acutator

Technical Specifications:

  • Design & Manufacture standard: DIN3356
  • Face to face dimension standard: DIN3202
  • Flange standard: DIN2543 to DIN2546
  • Test & Inspect: DIN3230

Dimmension:

DIN PN40 OS & Y Flanged Globe Valve , Steam Cast Steel Globe Valve DIN PN40 OS & Y Flanged Globe Valve , Steam Cast Steel Globe Valve

Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100
H 218 258 275 280 330 350 355 400 415 460 510 710 786 925 1120
