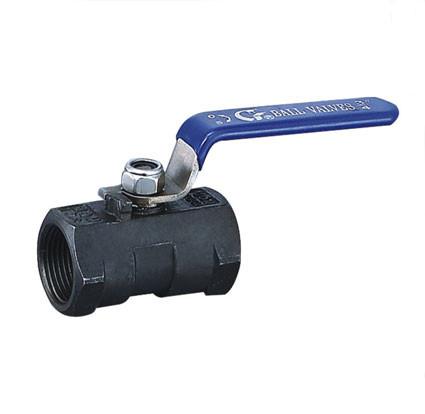

1 PC 2000WOG Reduced Port Ball Valve Carbon Steel With BSPT / NPT Thread
Description:
One piece ball valves are almost always reduced bore, are relatively inexpensive. In Reduced port (more commonly known as reduced bore) ball valves, flow through the valve is one pipe size smaller than the valve's pipe size resulting in flow area being smaller than pipe.
Features:
| Item | Part | Material |
| 1 | Body | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 2 | Cap | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 3 | Ball | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 4 | Seat | PTFE | PTFE | PTFE |
| 5 | Stem | ANSI 316 | ANSI 304 | ANSI 304 |
| 6 | Thrust Washer | PTFE | PTFE | PTFE |
| 7 | Packing | PTFE | PTFE | PTFE |
| 8 | Gland Nut | ANSI 304 | ANSI 304 | ANSI 304 |
| 9 | Handle | ANSI 430 | ANSI430 | ANSI 430 |
| 10 | Washer | ANSI 301 | ANSI 301 | ANSI 301 |
| 11 | Nut | ANSI 304 | ANSI 304 | ANSI 304 |
Advantage:
1, We offer the non-standard valves, according to customer requirements
2, If you want, you can have your own logo on the products
3, Exported to all over of the world
4, We can promise the quality, passed the API,CE,SGS and ISO certification
Choose me, do not hesitate:
1, Design team: We have the professional design people, as u choose, Customer's sample is always welcomed
2, Professional factory: We are manufacturer, specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
3, Sample: We can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.
4, Rapid response to your needs: We will be answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
