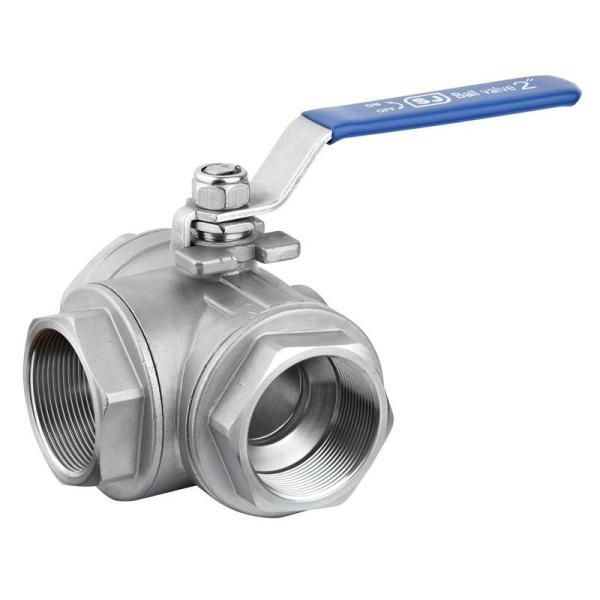

L / T Port Three Way Ball Valve Thread Reduced Bore 1/4" 1000PSI
Product Description:
1, open and close without friction. This feature completely solve the traditional sealing surface of the valve due to the friction between the sealing effect issue.
2, a single-seat design. Remove the valve due to abnormal pressure in the cavity mediumaffect the use of safety problems.
3, low torque design. Special structural design of the stem, just with a little hand can easily open and close the valve.
4, the sealing surface of the self-cleaning structure.
Features:
- 3 way ball valve Fluid resistance is small
- Ball valve has a Simple structure, small size and light weight
- Reduce Port
- Convenient operation, open and close rapidly,as long as 90 degree rotation
- Testing according to API 598
- Blow-Out Proof Stem
- ISO 5211 Direct mounting pad, can eqqiped with pneumatic or electric actuator
Specifications:
| Name | Stainless Steel 3 way ball valve |
| Size | 1/4"-2" |
| Technology | Casting |
| Material | CF8/CF8M/WCB |
| Connection Ends | Female Threaded |
| Suitable Medium | Water, Oil, Gas |
| Working Pressure | PN16-PN64 |
| Port | L/T Port |
| Safety Feature | Locking operation |
Main Parts Materials
| Item | Part Name | Material |
| 1 | Body | CF8/CF8M/WCB |
| 2 | Ball | SS304/316 |
| 3 | End Cap | CF8/CF8M |
| 4 | Bolting | A193-B8 |
| 5 | Ball Seat | PTFE |
| 6 | Packing | PTFE |
| 7 | Stem | SS316/304 |
| 8 | Gland | SS304 |
| 9 | Handle | SS304 |
| 10 | Nut | A193-B8 |

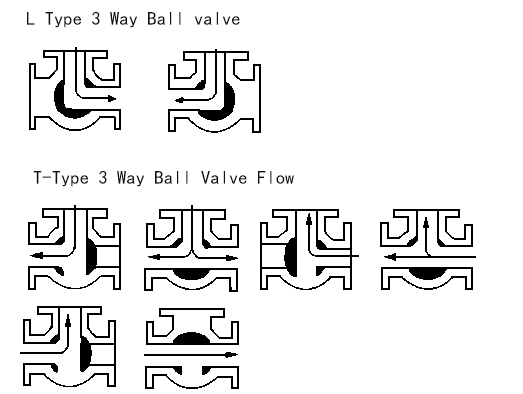

3 way ball valve according to core devided into L-type, widely used in chemical, petrochemical, oil refining, energy, offshore drilling, marine, pulp and paper, pharmaceutical, biotechnology, food and beverage.
Advantage:
1, We offer the non-standard valves, according to customer requirements
2, If you want, you can have your own logo on the products
3, Exported to all over of the world
4, We can promise the quality, passed the API,CE,SGS and ISO certification
Choose me, do not hesitate:
1, Design team: We have the professional design people, as u choose, Customer's sample is always welcomed
2, Professional factory: We are manufacturer, specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
3, Sample: We can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.
4, Rapid response to your needs: We will be answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
