1.5 Inch Rubber Disc Water Supply Ductile Iron Check Valve Swing BS EN12334 PN10

Product Categories
zhejiang teyi valve co.,ltd.
Contact Now

1.5 Inch Rubber Disc Water Supply Ductile Iron Check Valve Swing BS EN12334 PN10

Brand Name : TEYI

Model Number : HC44X

Certification : ISO/CE/API/TS

Place of Origin : China

MOQ : 1-10PCS

Price : negotiation

Payment Terms : L/C at Sight, T/T , Westem Union

Supply Ability : 500PCS per month

Packaging Details : Packed in woven bag firstly, and then reinforced with wooden case for outer packing

Product Name : Rubber disc swing check valve

Size : DN50 to DN600

Pressure : PN6 to PN25

Working Temperature : 0 to 80 ℃

Medium : Water or Oil.

Inspection and testing Standard : GB/T13927 or API598

Contact Now

1.5 Inch Rubber Disc Water Supply Ductile Iron Check Valve Swing BS EN12334 PN10

Product Description:

Mainly by the body, bonnet and valve components. Valve with rubber-coated steel plate vulcanized molded, erosion resistance, good sealing performance. Sealing with tilt design, the closing time is short, noise is small can reduce water hammer, and easy accumulation of debris. Simple structure, maintenance, easy to maintain. Such valve is mainly used for water supply and drainage systems, can be installed on the pump at the outlet to prevent backflow and water hammer damage to the pump can also be mounted on the reservoir inlet pipe to prevent water backflow.

Specifications:

Material for main PartsBodyCast Iron,Ductile Iron, Carbon Steel
DiscCarbon steel coated with Rubber
CoverCast Iron,Ductile Iron, Carbon Steel
GasketAsbestos
Bolt /NutCarbon Steel or SS
Working Temperature0 to 80 Celsius degree
Working MediumWater, Oil

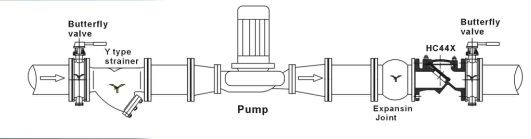

Installation Drawing:
1.5 Inch Rubber Disc Water Supply Ductile Iron Check Valve Swing BS EN12334 PN10

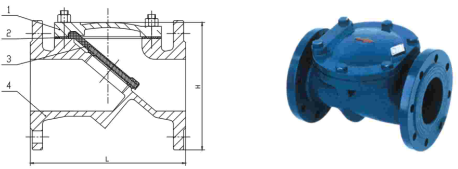

Dimmension:
1.5 Inch Rubber Disc Water Supply Ductile Iron Check Valve Swing BS EN12334 PN10

SIZE(DN)506580100125150200250300
H(mm)215230260285330375520650698
L(mm)185205260300350400500615698


Competitive Advantage:
1 . 30 years of industrial valves experience to guarantee quality.
2 . Always stand on the side of of the customer, and support customer to win the market and find new way.
3 . 12 months warranty
4 . Shorter Delivery time
