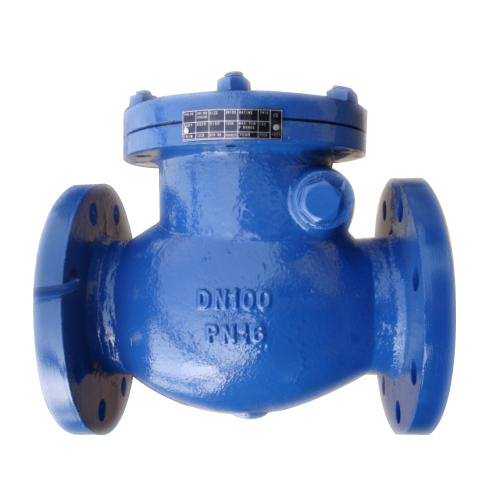

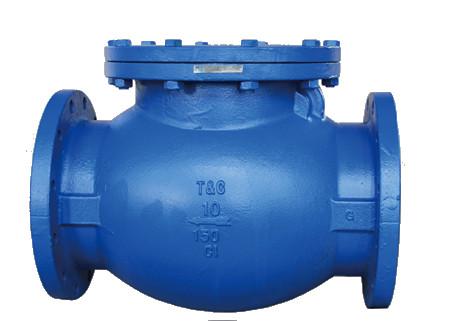

DIN Cast Iron Low Pressure Flanged Check Valve Swing RF For Water

  • 1
  • 2
  • 3

Brand Name : TEYI

Model Number : H44H

Certification : ISO/CE/API/SGS

Place of Origin : China

MOQ : 1-20PCS

Price : negotiation

Payment Terms : T/T; L/C,Western Union

Supply Ability : 500pcs per month

Delivery Time : 7-15 working days after received payment

Packaging Details : Packed in carton firstly, and then reinforced with wooden case for outer packing

Product Name : Cast Iron Flanged Check Valve

Size : DN50-DN400

Material : Cast Iron

Connection End : Flange

Face to Face Dimension : DIN3202

Pressure Rating : PN16, PN25,PN40

Flange End Dimension : DIN2543-DIN2547

Test Standard : DIN3230

Contact Now

DIN Cast Iron Low Pressure Flanged Check Valve Swing RF For Water

Product Description:

This kinds of valves are widely used in water source projects, urban water supply and drainage, sewage treatment, electric power, petroleum, petrochemical, heat supply, shipbuilding, medicine and metallurgy industries. Valves used for regulating or cutting off liquids in pipelines.

Features:

a) Unique stem hole design in the disc ensures a dry stem journal;

b) 360 degree polished disc assures positive on-off;

c) Long service life, standing the test of tens thousands opening/closing operations;

d) Bubbles-tight sealing with no leakage under the pressure test;

e) Wide selection of materials , applicable to various medium

Main Parts and Standard

Part Name Material
Body Cast Iron or Ductile Iron+Brass
Bonnet Cast Iron or Ductile Iron+Brass
Disc Cast Iron or Ductile Iron+Brass
Stem Brass, Stainless Steel

DIN Cast Iron Low Pressure Flanged Check Valve Swing RF For Water

DIN Cast Iron Low Pressure Flanged Check Valve Swing RF For Water

Competitive Advantage:

1. 30 years of industrial valves experience to guarantee quality.
2. always stand on the side of of the customer, and support customer to win the market and find new way.
3. 12 months warranty
4. Short Delivery time
