2-piece A216WCB, Class 150 Floating Ball Valve With Mounting Pad
Technical Standard:
Design Standard:API608/ API6D
Face to Face: AMSE B16.10
Flanged End: ASME B16.5
Inspection& Testing:API 598/ API6D
Operated by: Hand wheel, Gear, Pneumatic, Motor, hydraulic and Electric actuator.
| Description of Parts |
| Part Name | Material |
| Body | WCB/WCC, SS |
| Bonnet | WCB / WCC, SS |
| Ball | A105+ENP, SS |
| Stem | 420/304/316 |
| Seat | PTFE/RPTFE |
| Packing | Graphite/PTFE/RPTFE |
| Gland Flange | WCB/SS |
| Gasket | Graphite/PTFE |
| Bolt | B7 |
| Nut | 2H |
| Thrust Washer | PTFE/RPTFE |
| Handle | WCB |
Dimmension:
| ressure stage | Size | Dimensions(mm) | Weight (kg) | | |
| DN | NPS | L | d | W | H | |
| RF | RTJ | Hand wheel | Gear box | Hand wheel | Gear box | Hand wheel | Gear box |
| 150 | 15 | 1/2 | 108 | 119 | 14 | 140 | — | 85 | — | 3 | — |
| 20 | 3/4 | 117 | 130 | 19 | 140 | — | 90 | — | 4 | — |
| 25 | 1 | 127 | 14 | 25 | 150 | — | 99 | — | 5 | — |
| 32 | 11/4 | 140 | 153 | 32 | 180 | — | 105 | — | 7 | — |
| 40 | 11/2 | 165 | 178 | 38 | 200 | — | 126 | — | 8 | — |
| 50 | 2 | 178 | 191 | 51 | 250 | — | 140 | — | 12 | — |
| 65 | 21/2 | 190 | 203 | 64 | 300 | — | 165 | — | 18 | — |
| 80 | 3 | 203 | 216 | 76 | 350 | — | 178 | — | 24 | — |
| 100 | 4 | 229 | 242 | 102 | 500 | 305 | 230 | 380 | 38 | 53 |
| 125 | 5 | 356 | 369 | 127 | 800 | 305 | 280 | 405 | 60 | 79 |
| 150 | 6 | 394 | 407 | 152 | 800 | 305 | 310 | 460 | 82 | 102 |
| 200 | 8 | 457 | 470 | 203 | 1000 | 305 | 350 | 550 | 145 | 185 |
| 250 | 10 | 533 | 546 | 254 | — | 400 | — | 706 | — | 280 |
Our Advantage:
1. We have more than 30years experiences to explore market.
2. We have more than 120 types body moulds, which include ISO,DIN,ANSI,BS standard.
3. We own full-automatic machine paint line, match high-temperature
baking house,which makes smooth paint and good appearance of valve.
4. Design-cast-machining-assemble-sale-after sale service.Perfect production and service,efficient and professional sales team,what we sale is not products, but solution for you!
We regards"high quality products and customer satisfaction"as
belief,regards "reasonable price, attentive service and most reliable
quality" as basic of company. We make the following commitments to
you.
Product Tags:
|
|

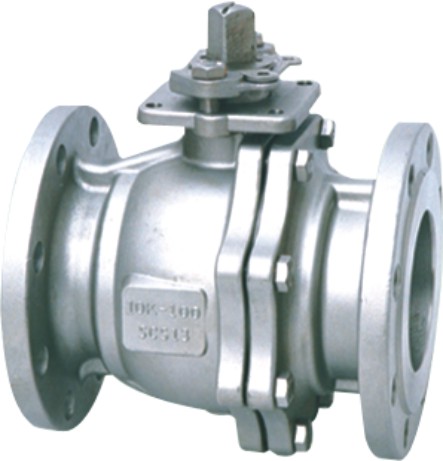

2 Piece A216WCB Class 150 Floating Flanged Ball Valve With Mounting Pad Images
|
