3/4 inch, 150LB, SS304 Full Bore 3PC Flanged Ball Valve with ISO 5211
Description:
The 3pc Flanged Ball Valve is casting body and blow-out proof stem. It has ISO 5211 direct mounting pad for actuator. Its full bore and locking device handle available.Also has pure TEFLON seals and seats.
There has anti-static device on ball and body. usually the temperature range is <150° C . We have 100% leakage tested at 100 psi air under water.
Features:
| Product Name | 3PC Flanged Ball Valve |
| Type of Port | Full bore/Reduce port |
| Body | SS304, SS316(CF8, CF8M), WCB |
| Size | 1/2"-4"(DN15-DN100) |
| Pressure | PN16-PN40, Class 150 |
| Ball | SS |
| Seat | PTFE, RPTFE |
| Shaft/Stem | A182 F6 or F304/316 |
| Operation | Manual, Power-electric, Pneumatic |
| Working Medium | Water, Oil, Gas and Corrosive Liquid |
| Temperature Range | -20-300 degree C |
| Locking | with or without |
Design Technical:
- Design Acc: ASME B16.34
- Face to Face: ANSI B16.10/JIS B2002/DIN 3202
- Flange Standard: ASME 16.5/JIS B2220/DIN 2633
- Fire-Safe Design Avavilabe Acc: API 607
- Inspection & Testing Acc: API598

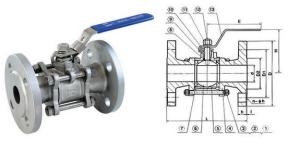

| Size | NPS | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" | 2.1/2" | 3" | 4" |
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 85 | 100 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 |
| H | 75 | 85 | 90 | 110 | 130 | 140 | 170 | 180 | 250 |
| W | 130 | 140 | 140 | 170 | 200 | 220 | 350 | 350 | 550 |
Advantage:
1, We offer the non-standard valves, according to customer requirements
2, If you want, you can have your own logo on the products
3, Exported to all over of the world
4, We can promise the quality, passed the CE and ISO certification
Choose me, do not hesitate:
1, Design team: We have the professional design people, as u choose, Customer's sample is always welcomed
2, Professional factory: We are manufacturer, specializing in manufacturing stainless steel valves for many years, competitive price with good quality, the deadline usually is 30-45 days
3, Sample: We can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.
4, Rapid response to your needs: We will be answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
