Simple Domestic Water Ball Check Valve Large Flange End Dimensions DN1000

  • 1
  • 2
  • 3

Brand Name : TEYI

Model Number : HQ41X

Certification : ISO/CE/API/TS

Place of Origin : China

MOQ : 1-10PCS

Price : negotiation

Payment Terms : L/C at Sight, T/T , Westem Union

Supply Ability : 500PCS per month

Packaging Details : Packed in woven bag firstly, and then reinforced with wooden case for outer packing

Product Name : Ball check valve

Size : DN50 to DN1000

Pressure : PN6 to PN25

Working Temperature : 0 to 80 ℃

Medium : Water or Oil.

Inspection and testing Standard : GB/T13927 or API598

Contact Now

Simple Domestic Water Ball Check Valve Large Flange End Dimensions DN1000

Description:

Ball Check valves are suitable for pipe network systems of cold water, hot water , industrial and domestic water. it is suitable to be installed at the exit of water pump in order to avoid the refluence of the medium.

Ball check valves are automatically actuated. they are opened and sustained in the open postion by the force of velocity pressure, and closed by the force of gravity. they can be installed in horizontal or vertical pipe lines.

Two types can be chose, singel ball type and Multi ball type. Multi ball check valves are suitable for large size (DN300-DN1000).

Specifications:

Material for main Parts Body Cast Iron,Ductile Iron, Carbon Steel
Ball Cast Iron coated with Rubber
Cover Cast Iron,Ductile Iron, Carbon Steel
Gasket Asbestos
Bolt /Nut Carbon Steel or SS
Working Temperature 0 to 80 Celsius degree
Working Medium Water, Oil

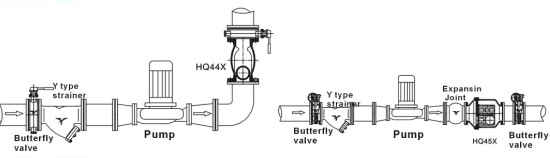

Installation Drawing:

Simple Domestic Water Ball Check Valve Large Flange End Dimensions DN1000

Dimmension:

SIZE(DN) 50 65 80 100 125 150 200 250 300
H(mm) 215 230 260 285 330 375 520 650 698
L(mm) 185 205 260 300 350 400 500 615 698

Competitive Advantage:

1 . 30 years of industrial valves experience to guarantee quality.

2 . Always stand on the side of of the customer, and support customer to win the market and find new way.

3 . 12 months warranty

4 . Shorter Delivery time
