Sewage Compact Full Bore Check Valve Disc Swing Type PN6 to PN25

Product Categories
zhejiang teyi valve co.,ltd.
Contact Now

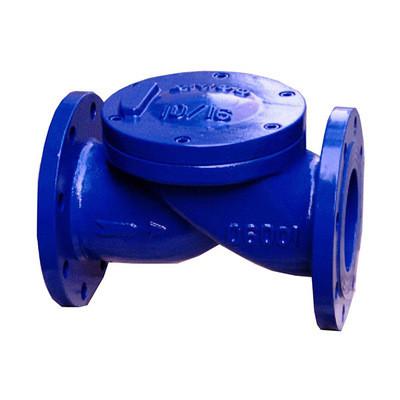

Sewage Compact Full Bore Check Valve Disc Swing Type PN6 to PN25

  • 1
  • 2

Brand Name : TEYI

Model Number : HC44X

Certification : ISO/CE/API/TS

Place of Origin : China

MOQ : 1-10PCS

Price : negotiation

Payment Terms : L/C at Sight, T/T , Westem Union

Supply Ability : 500PCS per month

Packaging Details : Packed in woven bag firstly, and then reinforced with wooden case for outer packing

Product Name : Rubber disc swing check valve

Size : DN50 to DN600

Pressure : PN6 to PN25

Working Temperature : 0 to 80 ℃

Medium : Water or Oil.

Inspection and testing Standard : GB/T13927 or API598

Contact Now

Sewage Compact Full Bore Check Valve Disc Swing Type PN6 to PN25

Description:

Rubber Disc Swing Check Valve can be installed in water supply system or pumps' outlet to prevent the fluid back. Valve disc is carbon steel coated with rubber (EPDM or NBR), there is no tendency for the seating surfaces of rubber disc swing check valve to gall or score, because the disc meets the oblique seat with rubber contact upon closing, so valve life will be greatly extended, and reduce noise.

Rubber disc swing check valves are used to prevent reversal of flow in horizontal or vertical pipe lines. In vertical lines, or for any angle from horizonal to vertical , they can be used for upward flow only.

Specifications:

Material for main Parts Body Cast Iron,Ductile Iron, Carbon Steel
Disc Carbon steel coated with Rubber
Cover Cast Iron,Ductile Iron, Carbon Steel
Gasket Asbestos
Bolt /Nut Carbon Steel or SS
Working Temperature 0 to 80 Celsius degree
Working Medium Water, Oil



Installation Drawing:

Sewage Compact Full Bore Check Valve Disc Swing Type PN6 to PN25

Dimmension:

Sewage Compact Full Bore Check Valve Disc Swing Type PN6 to PN25

SIZE(DN) 50 65 80 100 125 150 200 250 300
H(mm) 215 230 260 285 330 375 520 650 698
L(mm) 185 205 260 300 350 400 500 615 698

Competitive Advantage:

1 . 30 years of industrial valves experience to guarantee quality.

2 . Always stand on the side of of the customer, and support customer to win the market and find new way.

3 . 12 months warranty

4 . Shorter Delivery time
