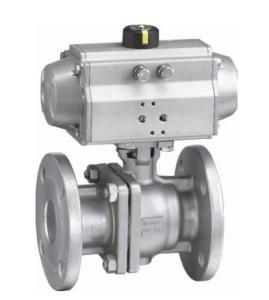

ANSI 150LB ASME B16 34 Flange End Ball Valve , Lockable 4 Hydraulic Actuated Ball Valve

Name: ANSI 150LB ASME B16 34 Flange End Ball Valve Lockable 4 Hydraulic Actuated Ball Valve
Brand: TEYI or OEM
Price: 1 USD

Brand Name : TEYI or OEM

Model Number : Q41F

Certification : CE/API/SGS

Place of Origin : China

MOQ : 1-20pcs

Price : negotiation

Payment Terms : T/T or L/C at sight

Supply Ability : 500pcs per month

Delivery Time : 7-15 working days after received payment

Packaging Details : Packed in carton firstly, and then reinforced with wooden case for outer packing

Product Name : Pneumatic Flange Ball valve

Face to Face : ASME B16.10

Size : 1/2inch to 10inch

Flange Dimension : ASME B16.5

Pressure : Class 150LB to 600LB

Pressure-Temp : ASME B16.34

Standard : API 6D/API608/BS5351

Inspection standard : API598/API6D

Contact Now

ANSI 150LB ASME B16 34 Flange End Ball Valve , Lockable 4 Hydraulic Actuated Ball Valve

Product Description:

Switch Indication of hand operated
Valve locking device
Anti-fly out of stem and antistatic device ,fire safety of seat
In case of abnormal rise of pressure in the middle cavity of valve resulted from the medium left there suffered from changes of pipeline pressure or medium temperature, automatic pressure relief of valve seat cab be effected under the pressure of the medium it self.
Pneumatic actuator: Single Acting or Double Acting, IP65, Air Pressure:0.6 to 0.8Mpa. Outdoor type or Explosion-proof type or requirements

Standard:

1. Design and Manufacture Standard: API598/BS5351/API6D

2. Pressure-Temperature Standard: ASME B16.34

3. Face to Face Dimension Standard: ASME B16.10

4. Flange Dimension Standard: ASME B16.5

5. Inspection and Test Standard: API598/API6D

Specifications:

Material of main Parts	Body	Stainless Steel SS304/316/304L/316L
	Ball	SS304/SS316
	Shaft	A182 F6 or F304/F316
	Seat	PTFE or RPTFE
	Bolt /Nut	SS304/SS316
Operation	Lever, Gear Box, Pneumatic, Electric
Working Temperature	-5 to 210 Celsius degree
Working Medium	Water, Oil, Gas, H2SO

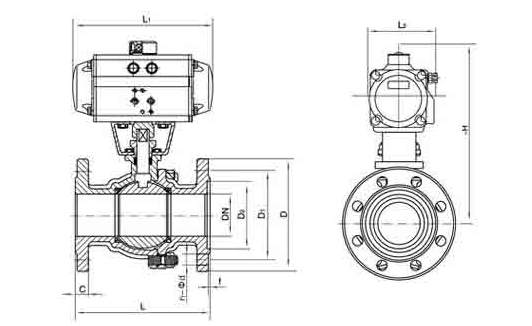

Dimension

Pressure stage	Size		Dimensions(mm)							Weight (kg)
	DN	NPS	L		d	W		H		Weight (kg)
	DN	NPS	RF	RTJ	d	Hand wheel	Gear box	Hand wheel	Gear box	Hand wheel	Gear box
150	15	1/2	108	119	14	140	—	85	—	3	—
	20	3/4	117	130	19	140	—	90	—	4	—
	25	1	127	14	25	150	—	99	—	5	—
	32	11/4	140	153	32	180	—	105	—	7	—
	40	11/2	165	178	38	200	—	126	—	8	—
	50	2	178	191	51	250	—	140	—	12	—
	65	21/2	190	203	64	300	—	165	—	18	—
	80	3	203	216	76	350	—	178	—	24	—
	100	4	229	242	102	500	305	230	380	38	53
	125	5	356	369	127	800	305	280	405	60	79
	150	6	394	407	152	800	305	310	460	82	102
	200	8	457	470	203	1000	305	350	550	145	185
	250	10	533	546	254	—	400	—	706	—	280

Competitive Advantages:
1. Our products is guaranteed within 18 months after delivery.
2. We offer free sample if interest before orders.
3. Technology renovation, process improvement, structure optimization and quality improvement.
4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
6. 100% inspection & testing before delivery.
7. Third party inspection on customer requirement.
